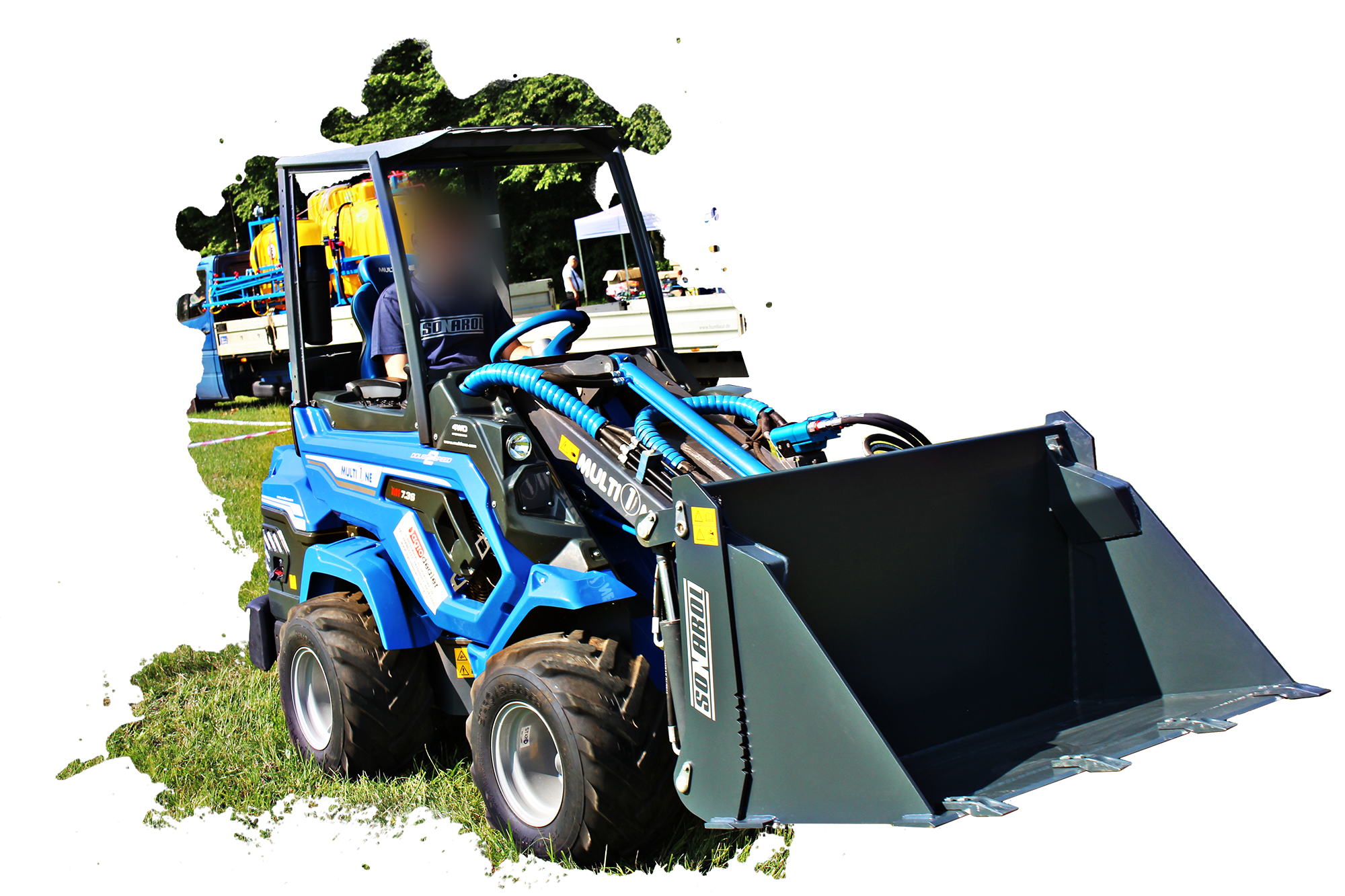

4-IN-1 MULTIFUNCTION SCOOP
The multifunctional scoop is a mini loader implement.
- The scoop is made from S355 steel grade with C45 steel pivot bushings and pins.
- The implement features three sharp-edged Hardox blades, with one at the jaw front, one at the jaw back, and one on the fixed part.
- The strong prongs of the scoop easily cut into sand, peat, and piles of rubble. The serrated side wall edges in the front provide a firm hold when you need to grab something with the scoop.
- The implement is finished with a powder coat.
MULTIFUNCTIONAL SCOOP FUNCTIONS:
- Scooping and carrying of loads similar to a regular scoop
- Bottom opening for dumping from an increased height
- Scooping and levelling with the blade while the scoop is open
- Grabbing
- Spreading of sand and gravel thanks to the bottom opening
Standard accessories:
- EURO / SMS mount
- Hardox 500 alloy blade
Optional accessories (priced separately):
- Euro hydraulic couplings
Width
1150 mm to 1450 mm
Capacity
0,35 m3 to 0,5 m3
Weight
241 kg to 271 kg
INTENDED USE
The 4-in-1 multifunction scoop is a tool for various jobs, including earth moving, handling, or even snow clearing. The design of the scoop enables clamshell picking, levelling, or bulldozing without switching to a different implement.
Specifications
|
ŁWM SNR 1150 4-in-1 multifunction scoop |
||
|
Width: 1150 mm |
Capacity: 0.35 m3 |
Weight: 241 kg |
|
ŁWM SNR 1250 4-in-1 multifunction scoop |
||
|
Width: 1250 mm |
Capacity: 0.38 m3 |
Weight: 251 kg |
|
ŁWM SNR 1350 4-in-1 multifunction scoop |
||
|
Width: 1350 mm |
Capacity: 0.44 m3 |
Weight: 261 kg |
|
ŁWM SNR 1450 4-in-1 multifunction scoop |
||
|
Width: 1450 mm |
Capacity: 0.5 m3 |
Weight: 271 kg |
