Budget bale grab

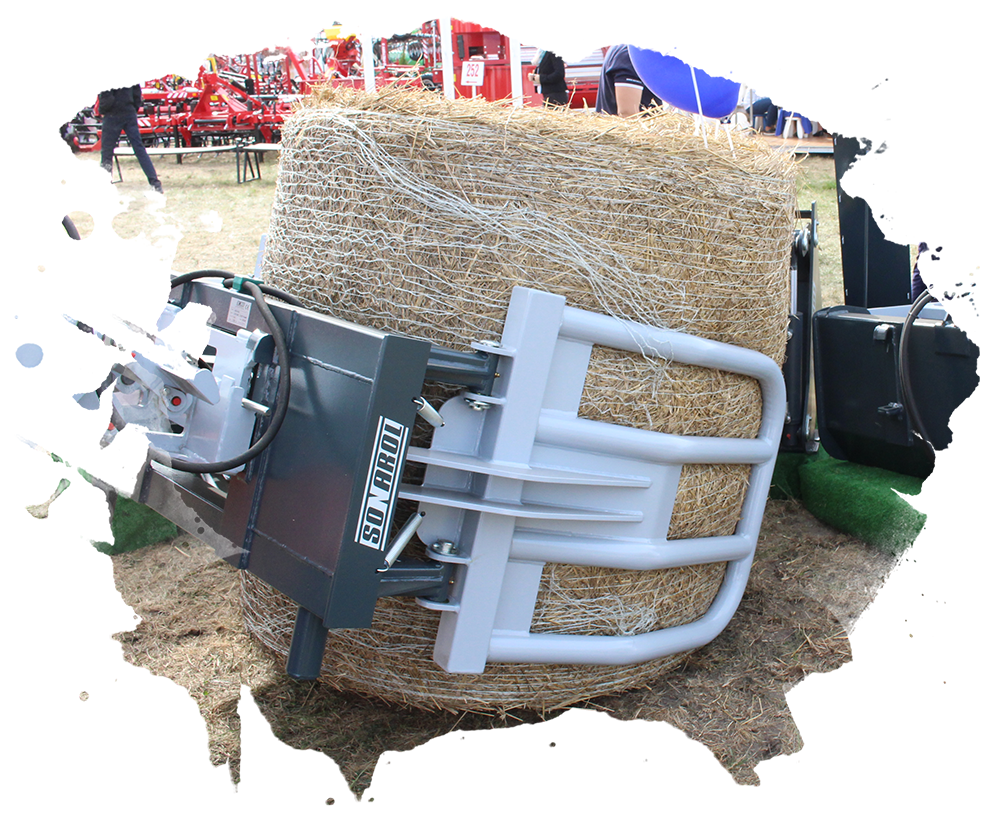

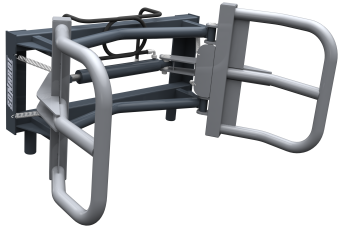

The CBE SNR 1500/1 budget bale grab is a front loader implement.
- The implement features a high-performance hydraulic cylinder.
- The bale arms can be opened and closed with variable speed to help the grab clear a stack without damaging the adjacent bales.
- The bale can work with all types of bales in a diameter range of 0.90 m to 1.55 m and a maximum weight of 700 kg.
- The whole structure of this product is made of HS (high strength) steel alloy finished by shot peening and powder coating for improved weather resistance.
- The arms are made from cold-bent dia. 60+ mm pipes with a wall thickness above 2.9 mm for a long life and a sure grab around each bale.
- The galvanized pivot bushings and pins are made from C45 structural steel with a high wear resistance.
- The hydraulic hoses feature press-clamped fittings installed by the best professionals at Sonarol and made from premium components provided by select European vendors for a high quality of finish and reliable operation. The hydraulic hoses can be custom-made on request.
- All working surfaces of the grab are finished smooth for safe handling of bales without any risk of ripping the plastic film wrapping.
Standard mount:
- EURO / SMS
Optional accessories (priced separately):
- Euro hydraulic couplings
Width
1330 mm
Lifting capacity
700 kg
Weight
140 kg
INTENDED USE
The CBE SNR 1500/1 bale grab is intended for handling, sorting and carrying baled hay silage, straw, hay and similar baled products. The robust, precision-made grab arms are safe to plastic-film wrapped bales.
Specifications
|
CBE SNR1500 budget bale grab |
||
|---|---|---|
|
Specification |
Units |
Value |
|
Width |
mm |
1550 |
|
Lifting capacity |
kg |
700 max |
|
Weight |
kg |
171 |
