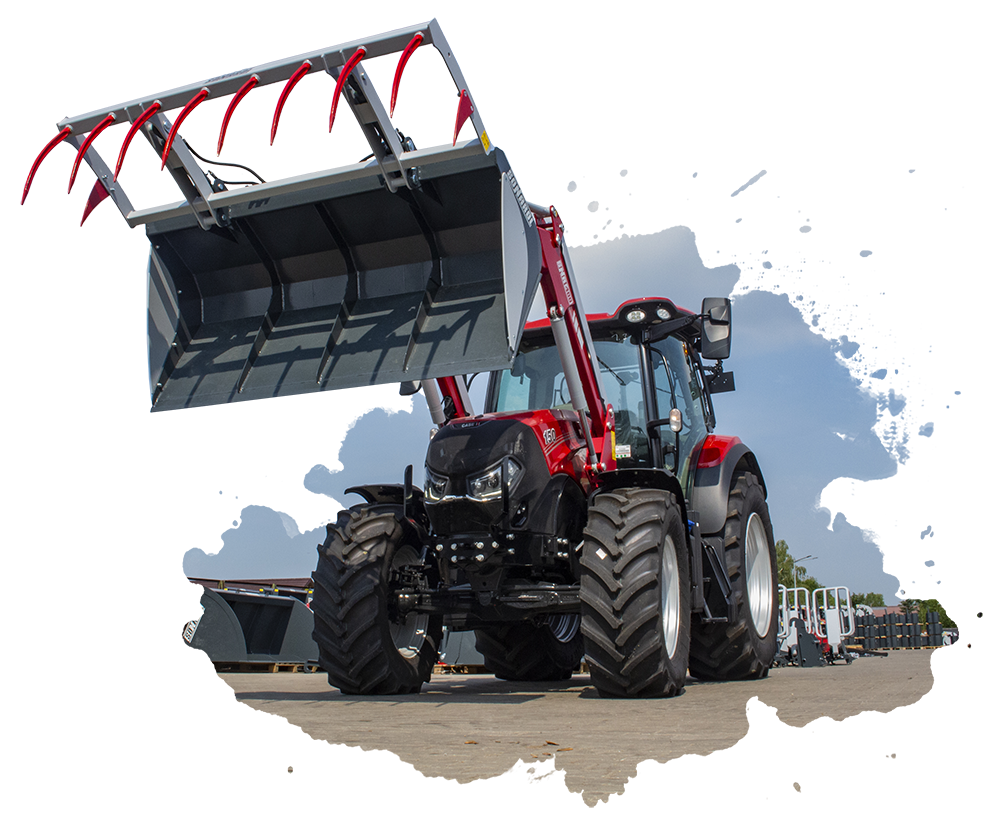

SCOOP GRAB
The scoop grab is a front loader implement.
- The robust and durable structure is made from HS (high strength) steel.
- The implement is finished with a powder coat.
- Heavy-duty hydraulic cylinders provide a firm and good hold of the grabbed material.
- The bucket bottom is solid for complete scooping and prevents spillage during transport.
- The bucket blade is made from HS steel and highly resistant to wear.
- The drop-forged prongs are replaceable and boast a high strength.
- The prongs are mounted in thick-walled, press-formed tapered sockets for extra stability under loads
- and a high durability.
- The thick-gauge cross-beam braces the implement frame and prevent deformation at high loads.
- The galvanized pivot bushings and pins are made from C45 structural steel with a high wear resistance for an improved reliability of operation.
- The hydraulic lines and fittings are made to high quality specifications for reliable operation, and can be customized to order.
- The 90° opening angle of the swivel frame is wide enough to facilitate easy scooping of bulk materials heaped at wall and floor corners.
Standard mount: EURO
Optional accessories: SMS mount and other mount standards available on request
Width
1500 mm to 2400 mm
Opening height
1350 mm
Weight
290 kg to 425 kg
Udźwig
od 1200 kg do 1600 kg
INTENDED USE
The scoop grab is intended for carrying manure, corn in bulk and other fine-grain materials that require a good containment across the base of the volume. Available width: 1.5 m, 1.8 m and 2.1 m; other sizes between 1.2 m and 2.4 m available on request.
Specifications
|
ŁK SNR 1500/2 scoop grab |
||
|
Width: 1500 mm |
Opening height: 1350 mm |
Weight: 290 kg |
|
ŁK SNR 1800/2 scoop grab |
||
|
Width: 1800 mm |
Opening height: 1350 mm |
Weight: 320 kg |
|
ŁK SNR 2100/2 scoop grab |
||
|
Width: 2100 mm |
Opening height: 1350 mm |
Weight: 365 kg |
|
ŁK SNR 2400/2 scoop grab |
||
|
Width: 2400 mm |
Opening height: 1350 mm |
Weight: 425 kg |
